Amazon API - Obtaining Credentials

Before we get started on this lengthy and critical process, let's go over a few chief terms and concepts. To access Amazon's data from any other source (Business Central), they require that you go through security layers to authenticate your API calls.

• Developer Account: Amazon's gate. This registers you as someone building (or connecting to) software against their platform. The developer account ties your app to a legal entity, enforces their terms of service, and will eventually provide you with an application ID that every API call traces back to.

• AWS Account: AWS = Amazon Web Services. SP-API (Amazon's Selling Partner API) runs on top of the AWS infrastructure. You need an account to interact with it.

  • AWS/IAM User: A trackable identity inside of your AWS account. This user generates the access keys your app uses to authenticate requests.

  • AWS/IAM Policy: Defines what the IAM User can do. For SP-API, it's one thing: assume a role. Nothing else.

  • AWS/IAM Role: What actually has permission to call the SP-API. Your IAM User doesn't call the API directly; it temporarily assumes this role and gets short-lived credentials.

  • AWS/STS Trust Policy: Controls who can assume the role. Locks it to your specific IAM User so nothing else in your AWS account can use it.

The point of all of these configurations: Amazon doesn't let your app call SP-API with static credentials alone. Your IAM User's keys and role are permanent, but every actual API call goes through STS, which issues temporary tokens that expire. So even if a token is intercepted, it's useless shortly after. The only credentials you'd ever need to change manually is your LWA client secret.



---



Create an AWS Account

If you're not already an AWS customer, you can create a free AWS account. For more information, refer to AWS Free Tier - the Free Tier will work fine for the purpose of our CSM integration.

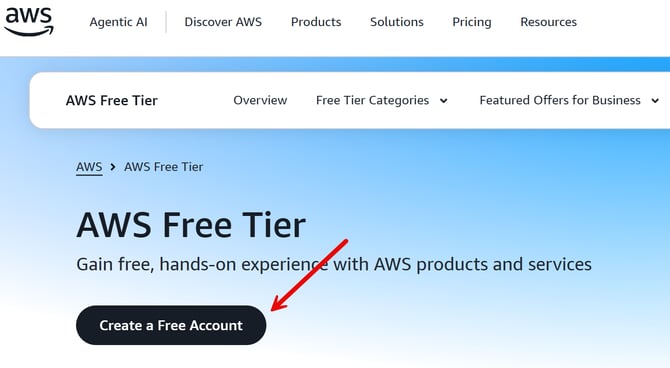

• Point your browser to the AWS Free Account page and then select Create a Free Account
  •
  • Enter in your email address; ensure you use an email address that will be administering this account. Based on how your company functions, you may want this to be a shared email account.
  • Choose your account name - we suggest using a name relates to the primary purpose of the account.
    • Example: CSM AWS Account
  • Follow the prompts to retrieve and input the verification code.
  • Next, you will be required to choose your password, confirm your plan type (Free), submit contact information and payment information and confirm your identity.



AWS : Create an IAM User

Once your account is confirmed as created (you'll be notified via email seconds after creating the account), you will need to create your IAM User (IAM = Identity and Access Management) . Even if you already have an AWS account with an IAM User, we recommend creating a new IAM user exclusively for this purpose.

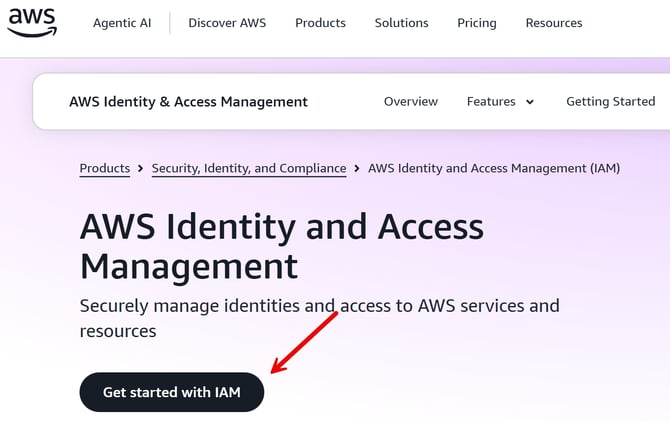

• Point your browser to https://aws.amazon.com/iam/ and select Get started with IAM
  •
• This will bring you to the AWS IAM configuration related to your region (eg - us-east-1)
  • From the left navigation pane, choose Users and then select Create user
  • Enter a name for the user - as with the AWS Account, we recommend a name relating to the primary purpose of the account/function
    • Example: CSMUser (spaces not allowed)
  • Click Next, Next again and then Create User

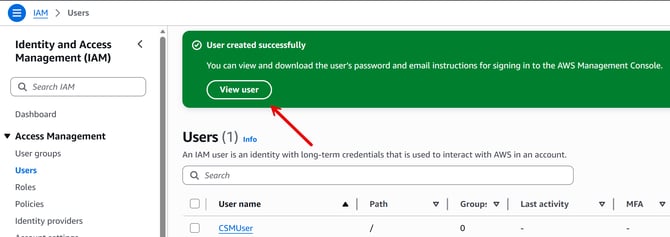

  • Select the View user button
    •

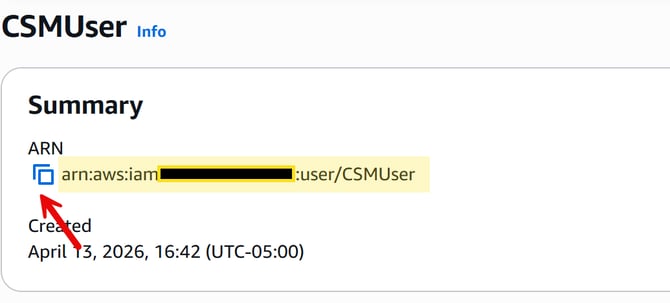

    • Retrieve the IAM User ARN (Amazon Resource Name) under the Summary section and save locally - we'll reference this later for the IAM Role creation
      •

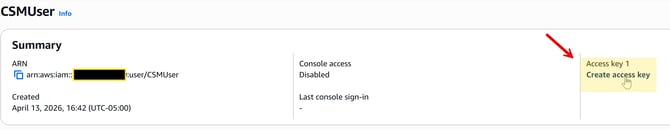

    • Click Create access key
      •

• • • • You will see several options; we suggest selecting Application running outside AWS and then clicking Next and then Create access key
      • Click Show to view your Secret access key and ensure you save both the Access key and Secret access key somewhere locally - you will not be able to return to view the Secret access key again after this step.

• • • • Click Done



AWS: Create an IAM Policy

• From the left navigation pane, choose Policies and then select Create policy
  • Choose the JSON tab at top-right and paste the following code into the text box (replacing the existing code)

{

"Version": "2012-10-17",

"Statement": [

{

"Effect": "Allow",

"Action": "execute-api:Invoke", "Resource": "arn:aws:execute-api:*:*:*"

}

]

}

• • Choose Next
  • Enter a name for the policy
    • Example: CSMPolicy
  • Select Create policy



Create an IAM Role

• From the left navigation pane, choose Roles and then select Create role

• • Select AWS account
    • In the An AWS account section, you should see the 12-digit numeric account identifier that was contained in the IAM User's ARN you saved locally in an earlier step
    • Click Next

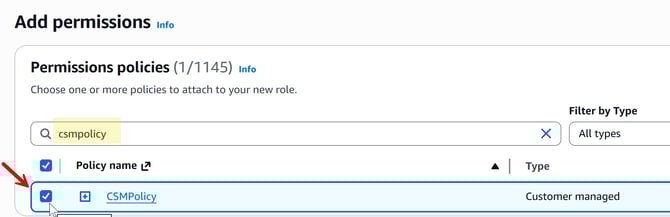

  • Search for the IAM Policy you created earlier and then click the checkbox
    •

• • Click Next
  • Enter a name for the role
    • Example: CSMRole
  • Click Create role

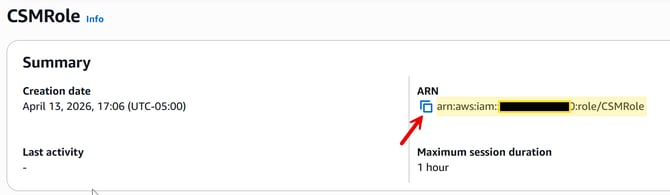

  • Click on the Role you just created and ensure you save the IAM Role ARN locally as we will use this for some future steps

    •



AWS: Add a Security Token Service Policy to your IAM User

• From the left navigation pane, choose Users and then choose the user that we created in an earlier step

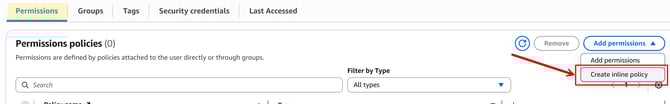

  • Under the Permissions tab, select the Add permissions dropdown and choose Create inline policy
    •
    • Underneath the Service section, type "sts" and select the STS result

• • • Under Access Level, select the arrow next to Write to expand the section
      • Select AssumeRole
      • Underneath the Resources section, click the Add ARNs link
      • In the Specify ARNs popup, enter the Role ARN we saved from the earlier step
      • Click Add ARNs
    • Click Next
    • Click Create policy



Register your Application

• Point your browser to your Amazon Seller Central account
• Click the hamburger menu at top-left; under Apps and Services, select the Develop Apps page
  • Click Add new app client.
    • The App registration page appears
      • Enter a name for the application
        • Example: CSM
      • API Type: SP-API
      • Amazon Partner Type: Sellers (Vendor Support is not yet supported by CSM)
      • Seller Roles: we recommend checking all boxes available to ensure all functions in CSM are working as intended.
      • Restricted Data Token (RDT)

        • As part of this registration process, you can apply for a Restricted Data Token that authorizes you to retrieve shipping address details as part of the order retrieval process from Amazon.

          • This extra security token is in place to protect PII (Personally Identifiable Information); if you operate exclusively with FBA, then you do not need this access.

          • We have a page dedicated to walking you through the RDT approval process.

          • If you would like to apply for access to this business function, select the Yes, I will delegate access to PII to another developer's application and then select Direct-to-Consumer Shipping
    • Click Save and exit



Accessing Application Information/Credentials

• Point your browser to your Amazon Seller Central account
• Click the hamburger menu at top-left; under Apps and Services, select the Develop Apps page

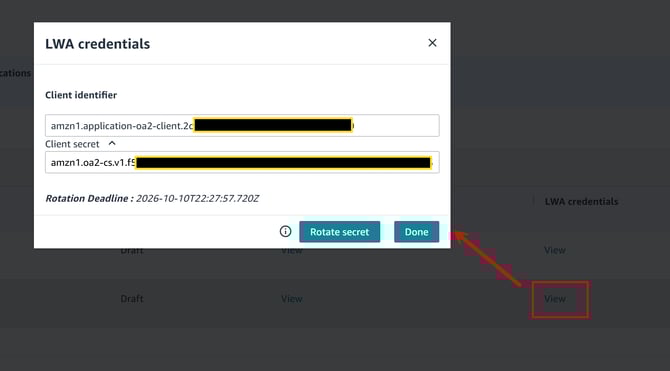

  • Click View under LWA credentials for your application and you will be able to access your Client ID and Client Secret. This is also the section you will access every 6 months to Rotate your LWA Credentials.
    •



Generating a Refresh Token for your Application

• Point your browser to your Amazon Seller Central account
• Click the hamburger menu at top-left; under Apps and Services, select the Develop Apps page

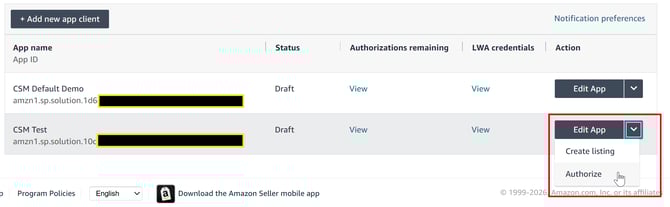

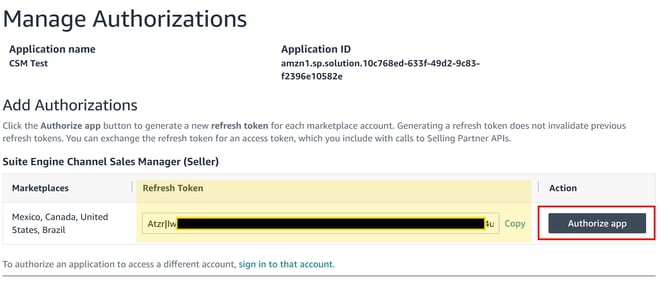

  • Underneath the application in question, select the drop down under the Action column and select Authorize.  This will generate a Refresh Token for your application connection - be sure to copy and save this token locally as you will not be able to access it again.
    •
    •



➡️ Next Step: Restricted Data Tokens
